Cameras 1952-1953

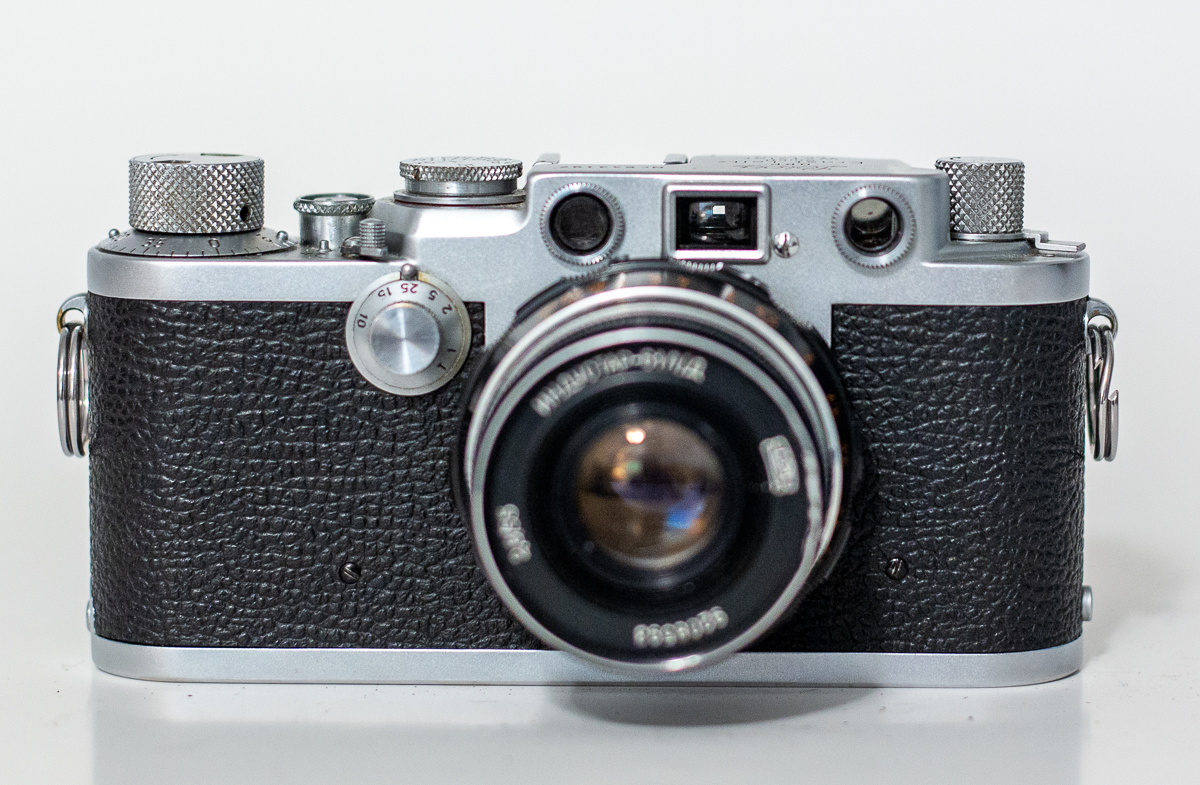

Leica IIIf Red Dial

Manufactured in Germany Format: Rangefinder

Technical Specifications

Serial Number 643197
Film Type 35mm
Shutter Curtain Shutter
Lens Model Various
Lens Mount M39

Notes & History

YYeCamera, $417.15 for full CLA and service, taxes and return shipping. (March, 2026)

Historical Context

The Leica IIIf is the crowning achievement of Ernst Leitz’s legendary screw-mount (LTM) rangefinder era. Produced in Wetzlar, Germany, from 1950 to 1957, it represents the absolute peak of precision miniature camera design before the radical redesign of the Leica M3 in 1954.

Among collectors and photographers, the “Red Dial” (RD) variant—introduced in late 1952 around serial number 611,000—is highly celebrated as the mechanically superior version of this classic body. The name comes down to literal color-coding on the camera’s control layout.

The IIIf was the first Leica to feature fully adjustable, built-in flash synchronization. To use the flash units of the era, photographers had to manually set a “synchro delay” scale located on a ring directly beneath the shutter speed dial.

The real treasure of the Red Dial model isn’t the paint—it’s the completely redesigned focal-plane shutter mechanism hidden inside.

Leitz engineered an entirely new ball-bearing shutter track for the Red Dial. This mechanical refinement drastically smoothed out the curtain travel, minimized internal friction, and improved exposure consistency. It also allowed the top shutter speed to change from a standard 1/300s setup up to a true, crisp 1/1000s. The geometric progression of the shutter speeds was also updated to the modern standard we recognize today (e.g., 1/25, 1/50, 1/75, 1/100 instead of the older Black Dial intervals).
